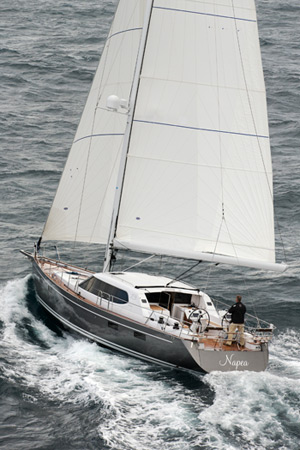

Hull Construction
Vacum infused Vinylester resins Gel Coat tie layered with e-glass Biaxial and BEA (Kevlar) woven wovings glass reinforcement outer and inner skins, Solid below waterline, cored end grain balsa composite above waterline. Hull thickness 34.4mm.
Hull Finish
Awl Grip 2000 Epoxy paint system, Colour to owners choice
Superstructure Finish
Gel Coat Finish, Oyster White.
Keel
5.8 tonne lead bulb, cast iron fin thru bolted into keel box of hull, epoxied and faired.
Rudder
GRP encased around a stainless steel frame welded to 3 & 1/2 " solid S/S rudder shaft and stock.
Propellor and shaft
Folding propeller on 38mm stainless shaft with bronze skeg.
Internal Joinery Timber
American Oak joinery and laid floors, Wenge skirtings, architraves and trims.
Deck Construction
Outer skin: Gelcoat tie layered with polyester/vinylester resin with CSM and Biaxial e-glass reinforcement. Hand laid.
Core: Glass sandwiched closed cell foam core and structural ply solid reinforcement under all fittings
Inner skin: polyester/vinylester resin with Biaxial e-glass reinforcement. Hand laid. Deck Equipment :
- Custom Stainless Steel stemhead with double bow roller, one fitted with a 80lb plough anchor and 50 metres of 13mm chain.
- Anchor dam
- Chain deflector
- Heavy duty 1500W electric anchor winch
- Large self draining anchor locker divided into two compartments
- Stainless steel bow pulpit
- Stainless steel stern pushpit with seat frames, teak seats and teak back rest.
- Stainless steel handrails between pushpit and S/S "A" frame side gates with boarding steps and teak cover to steps.
- Teak Cap Rail to Bulwark, 1 ¼" solid S/S Rubbing strip.
- Stainless Steel stanchions with double life lines.
- 2 Fwd, 2 Midship and 2 aft fairleads and mooring cleats
- 5 Flush deck hatches recessed into deck.
- 8 Fixed portholes to Hull
- Deck drains
- 1 Saltwater deck wash (accessed from anchor locker)
- 2 @ Fuel filler (one each side)
- 2 @ Water filler (one each side)
- 1 @ Blackwater deck pump out.
- Teak laid deck centre of foredeck fwd of mast.
- Non slip gelcoat finish to side decks and outer foredecks.
Cockpit:
- Moulded fiberglass self draining deck.
- 4 Storage lockers
- Hatch to Transom Garage below.
- S/S Pushpit teak bench seats to transom
- Teak laid cockpit floor from saloon step to transom, teak laid seats to cockpit and upper platform
- Twin Helm Wheels on Steering Pedestal with GRP Command instrument Consoles mounted on GRP pedestals (see below for description)
- Fold down stable door to saloon
- Opening rear bulkhead windows on either side of cockpit/saloon door, connecting saloon and cockpit.
- Cockpit table, Teak grate style leaves with grab s/s rails and drink holders.
Navigation Instrumentation to Cockpit Helm Consoles
- GRP Consoles mounted on GRP steering pedestals behind helm wheels
- Raymarine ST70 Auto Pilot Control Head with Gyro
- Raymarine SPX 30 Pilot Core pack
- Raymarine ST 70 Multi Function inc Wind, Depth, Speed, Log etc x 2
- Raymarine ST 70 Jumbo Displays x 2 located on Cabin wings
- Raymarine ST 70 Jumbo Display key pad controller
- Stainless steel engine electric throttle control
- Bow Thruster control
- Electric/hydraulic main sail furling controls
- Main and secondary winch hydraulic controls (2 speed)
- Anchor control and chain counter
- Engine Start Stop control
- Foot Furling Switch engage switch
Transom:
- Transom garage storage area moulded in stern with sealed bulkhead separation from rest of the yacht.
- Transom Garage door hydraulically operated with teak laid deck as swim platform when down
- Stainless steel swim ladder
- Freshwater transom shower
- Stainless steel bump rail to tuck
Mast & Rigging :
- Keel stepped alloy mast
- Three spreader rig
- Two deck lights to u/s of lower spreader
- Intermediate, lower and main deck shrouds
- Dyform type stainless steel standing rigging with swaged terminals
- 1 @ Backstay
- 1 @ Forestay
- Leisure Furl alloy boom with hydraulic furling system (incorporating halogen light to u/s)
- Stainless steel boom brake
- Hydraulic Boom Vang operated from cockpit helm
- Harken headsail furling system
- Self tacking headsail moulded into deck
- 4 x Arco/Harken Hydraulic Primary and Secondary winches in cockpit (2 speed)
- 2 x Arco/Harken manual halyard winches to mast
- Additional halyards for spinnaker, staysail etc
- Genoa Tracks
- Mainsail traveler track and cars to cabin top
- All sheets, halyards, deck blocks, stand up blocks, shackles, cars and brakes for all sheets
- All Halyards and sheets concealed below decks between fwd deck and combings.
- Flag halyards
- Windex
- Mainsail Radial cut Dacron (74.5 sqm) and Genoa Radial cut Dacron (53.6 sqm), by Hood Sails Australia
Electrical:
- BEP Digital Switching System CZone with Sub Boards located throughout boat
- 1 x 2500w Victron Quatro Inverter/battery charger
- Dedicated 12 volt battery for engine/generator start
- Dedicated 12 volt battery for 12 volt equipment
- Dedicated 24 volt Batteries for Bow thruster
- Eight @ 6 volt house service batteries 400 amp @ 24 volt
- One 24 volt 140 amp engine driven alternator for main house battery 24 volt charging
- One 12 volt 80 amp engine driven alternator for 12 volt main and generator battery charging
- One 12 volt 20 amp generator driven alternator
- One 24 to 12 volt dc to dc convertor
- 240 volt stainless steel shore power inlet
- 4 x 240 volt outlets
- 24 volt LED strip concealed lighting to interior cabins (interior)
- 24 Volt LED strip lighting concealed in galley floor and underbench
- 24 volt halogen reading lights to bunks
- LED Navigation lights
- LED Anchor light
- LED Combination steaming/deck light
- Cockpit light
- Light to underside of boom to cockpit
- 12 and 24 volt panel with breakers
- 240 volt panel with breakers
- Battery isolation switches
- 2 x Automatic Bilge pumps
- 1 x Manual Bilge Pump
- 1 x Deck wash pump (salt)
- 5 x Engine room and tunnel lights
- 3 x Shower/bathroom/galley sump pump
- 1 x Domestic Fresh water pump
|
Engine Room :
- Acoustic soundproofing
- 160hp Yanmar turbo diesel
- 9.5 kva Onan/Mase Generator
- Racor glass bowl fuel filters
- Stainless steel fuel and balance lines
- Engine room lights
- 1200 litre dual fuel tanks
- 689 litre dual water tanks
- Fuel and water balancing, drain and feed lines
- 40 litre hot water unit
- Domestic freshwater pump
- Saltwater deck wash pump
- Ball valves on all skin fitting inlets
- 38mm stainless steel propeller shaft with PPS dripless seal
- 2 x Electric bilge pump (fwd & engine compartments)
- 1 x Manual bilge pump
- 240 volt and 24 volt Refridgeration compressors
- Holding tank (black water) with macerator pump
- Winch and Furling Hydraulic power pack, pump, valve banks.
Main Engine :
- 160hp Yanmar turbo diesel with marine gears
- Freshwater cooling
- Alternator 140 amp 24 volt and 80 amp 12 volt
- Racor Fuel filter
Generator :
- 9.5kva Onan/Mase generator
- Racor fuel filter
Bow Thruster :
Galley :
- Corian galley top with corian fiddle (Both Sides)
- Overhead cupboards (American Oak)
- Pantry cupboards and drawers (American Oak)
- American Oak laid floor, Wenge kick boards/skirting
- American Oak faced bulkheads
- American Oak floor hatch in three sections for under floor storage
- Gimbaled electric Microwave/Convection oven and ceramic cook top
- Sinks Port and Starboard (Franki)
- Brodware Tapsets
- Hot and cold pressurised water
- 240 volt and 24 volt driven eutectic refrigerator
- 240 volt and 24 volt driven eutectic freezer
- Under bench lights (Halogen/LED)
- Overhead lights (Halogen/LED)
- 2 x 240 volt double outlet
Main Saloon:
- Laminated 14mm tinted safety glass windows
- Soft leatherette headliner panels with dual Oak grab rails to ceiling
- "L" shape main lounge settee leather upholstered.
- Two seater leather upholstered lounge Stbd. side
- Zebrano timber dinette table with configuration to coffee table
- American Oak handrails to galley
- American Oak steps down to galley
- American Oak solid laid floor
- Engine access hatches
- 2 x overhead flush deck hatches
- LED Lighting concealed
- 2 x 240 volt power outlet
- Verosol/Ocean Air blinds
- CD, Audio Entertainment (Fusion)
- 30" TV Plasma/LCD Screen
-
Helm Station in Main saloon :
- American Oak console and dashboard.
- Electrical cabinet and switchboard panel and AC Switch breakers below inc Anchor Winch circuit breaker.
- Engine controls, warning lights, audible alarm, oil pressure, water temperature gauge, tachometer, voltmeters etc.
- Stainless steel engine electric throttle control with Cockpit/Inside Helm selector.
- Raymarine Joystick control for hydraulic steering.
- BEP Digital Switching CZone Electronic System Control inc all DC Battery Monitoring and AC Monitoring.
- Tank level monitoring for Fuel, Water and Black Water Storage tanks, and pump out control.
- VHF radio Icom.
Internal Helm Navigation Instrumentation
- Raymarine ST70 Auto Pilot Control Head with Gyro
- Raymarine ST 70 Multi Function inc Wind, Depth, Speed, Log etc
- Raymarine SPX Auto Pilot System (Gyro)
Port Aft Cabin & Starboard Aft Cabin:
- Ensuite Toilet and Shower
- Soft leatherette headliner
- American Oak faced bulkheads and paneled bunk sides
- American Oak overhead lockers
- American Oak Double Drawer units
- American Oak Locker
- Double bunk berth.
- 125mm Mattress
- Storage under bunk
- 2 x Overhead light (Halogen/LED)
- 1 x Reading light (Halogen)
- Fixed porthole
- Opening porthole/hatch
- Solid American Oak laid floor
- American Oak faced cabin door
-
Port and Stbd. Aft Cabin Ensuites:
- Shower, toilet and vanity unit
- Brodware Tapsets stainless steel
- Electric Toilets are fresh water flush
- Hot and cold pressurised water
- Corian bench tops with corian fiddles
- 2 x overhead lights (halogen/LED)
- 1 x 240 volt outlet
- Hand held shower (Brodware sets)
- Vanity Mirror
- Towel rail
- 1 x overhead stainless steel towel rail to shower cubicle
- Teak shower grates
- Teak laid shower seat
- Soap dispenser and toothbrush holders
Forward Stateroom :
- Soft leatherette headliner
- American Oak "v" jointed boarding to cabin sides
- American Oak faced bulkheads
- Queen berth
- 200mm Mattress
- Leather Seat with storage under
- American Oak overhead cupboards and shelves
- American Oak hanging locker and shelf arrangements
- American Oak Large Drawers x 4
- Storage under bunk
- Large deck hatch
- 3 x overhead lights (Halogen/LED)
- 2 x reading lights (Halogen)
- 2 x fixed portholes
- Solid American Oak laid floor, Wenge skirting
- American Oak faced cabin door
- 24 volt power outlet
Forward Stateroom Ensuite:
- Separate Shower, toilet and vanity unit
- Fixed glass shower screen and door
- Brodware Tapsets stainless steel
- Electric Toilets are fresh water flush
- Hot and cold pressurised water
- Corian bench tops with corian fiddles
- 2 x overhead lights (halogen)
- 1 x 240 volt outlet
- Hand held shower (Brodware)
- Timber Louvres to Ensuite bulkhead.
- Vanity Mirror
- Towel rail
- 1 x overhead stainless steel towel rail to shower cubicle
- 1 x deck hatch
- Overhead locker
- Teak shower grates
- Oak laid floor
- Soap dispenser and toothbrush holders
|
